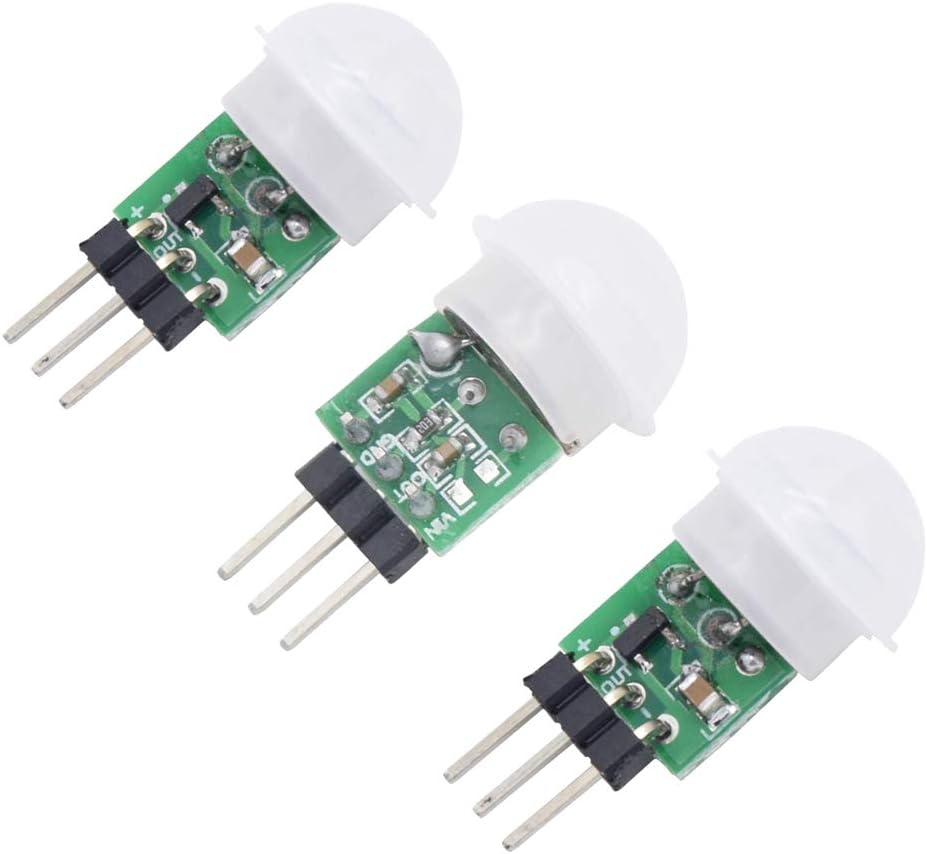

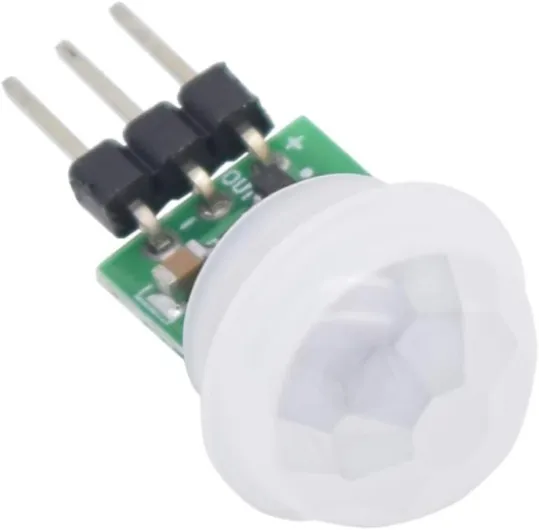

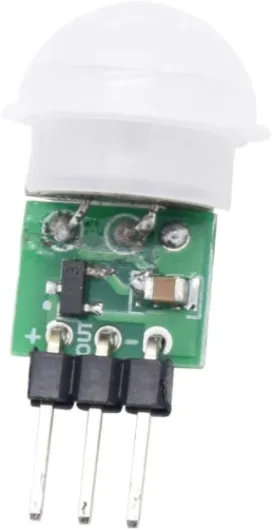

3pcs AM312 Mini Pyroelectric PIR Human Sensor Module PIR Infrared IR Sensor Body Manual Motion Infrared IR Detector

• ＋ Compact size
• ＋ Easy to integrate
• ＋ Low power consumption
• ＋ Multiple sensors in one set

Technical parameters:

• Working voltage: DC 2.7-12V
• Static power consumption: <0.1mA
• Delay time: 2 seconds
• Blocking time: 2 seconds
• Trigger mode: repeatable
• Sensing range: ≤100 degree cone angle, 3-5 meters; (depending on the specific lens)
• Working temperature: -20 - +60 °C
• PCB dimensions: 10mm*8mm
• Module lens: small lens

Package Includes:

• 3* AM312 Mini Pyroelectric PIR Human Sensor Module

• Working voltage: DC 2.7-12V.
• AM312 Human Sensing Module: Based on passive body infrared technology digital intelligent automatic control products, high sensitivity, reliability, widely used in various types of automatic induction electrical equipment.
• Low power consumption and small size for easy embedded installation.
• Sensing range: ≤100 degree cone angle, 3-5 meters; (depending on the specific lens)
